CONTROLLED ATMOSPHERE(CA) HINGED DOORS
TECHNICAL SPECIFICATIONS
- Door leaf constructed with a core of 100mm insulation material, covered on both sides with polyester, finished all-round with Anodised Aluminium Profiles and is thermal bridge free.
- Equipped with Framing Anodised Aluminium Profiles, thermal break to prevent heat bridges with a 'lift and drop' hinge.
- Specially made for small and compact CA rooms, makes total width of room accessible.
- 100% gas-tight due to unique inflatable profile system, even if there are wall and floor distortions or irregularities.
- Light and easy to handle doors with ‘lift and drop’ hinge, preventing wear and tear of the rubber bottom sealing.
| Construction | Fire-resistant Polyisocyanurate (PIR) insulation material with foam density of 40kg/m3. Both sides covered with 0.5mm PPGI steel flat sheet with polyester coating. |
| Thickness door leaf | 100mm. |
| R-value | Approx. 4.67(m2.K/W). |
| Framing | Anodised Aluminium Profiles, thermal bridge-free. |
| Colour of door leaf | Standard colours RAL 9002. |
| Sealing | 100% gas-tight by means of inflatable profiles. |
| Door frame | Anodised Aluminium Profiles with a complete thermal bridge-free fit to the wall. |
| Hinges | Block hinges and a SALCO patented ‘lift and drop’ hinge that raises the door a few millimetres, prevents normal wear and tear of the rubber bottom sealing while opening and closing. |
| Handles / bars | Three rotation bars included. Internal handle excluded. |
WIDE RANGE OF OPTIONS

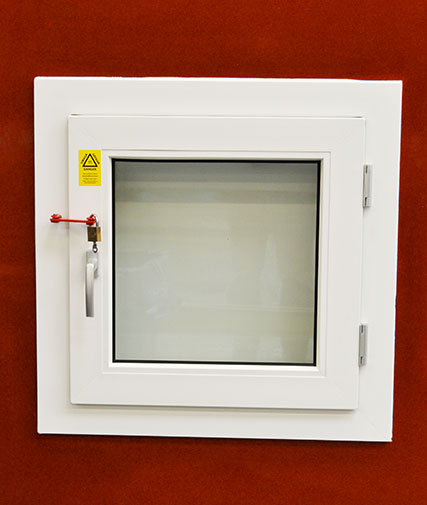

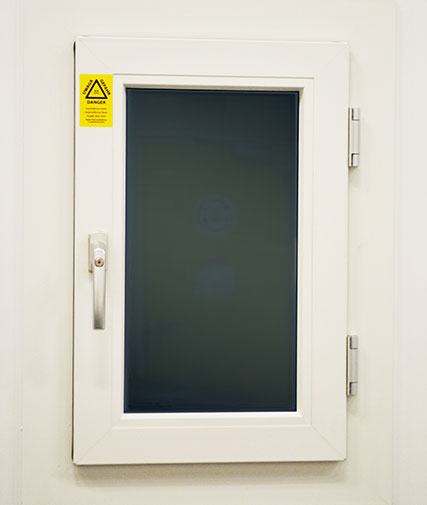

- CA Window in door.

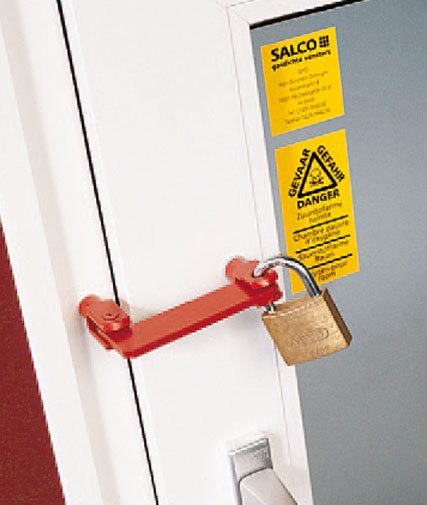

- Locks.
- Stainless steel door leaf sheet.
- Threshold heater.
- Variety of colours.
- Double door leaf.
CA Hinged Door - 3D view

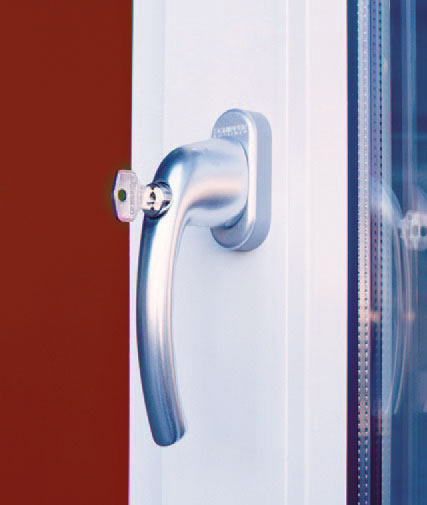

Rotation bar / External handle
Unique lift and drop hinges to protect wear and tear of rubber sealing
